ImageSampler

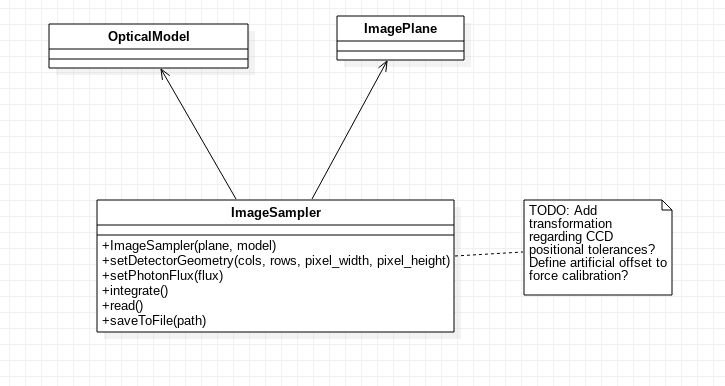

The ImageSampler component attempts to reproduce the image acquired by a CCD assuming an intensity field given by an ImagePlane object is placed in the entrance pupil of the optical model described by an OpticalModel object, simulating the image produced by the instrument. The ImageSampler is also in charge of translating the input intensity map into a flux map that can be used to integrate the image in the CCD.

_images/ImageSampler.png
class ImageSampler(plane, model)

Initializes the ImageSampler main object, from a given sky/mask ImagePlane as first argument and OpticalModel as second argument. The ImageSampler is set with a default oversampling value of HARMONI_IMAGE_SAMPLER_OVERSAMPLIGN (currently 8). Parallelization is set to true by default.

set_oversampling(oversampling)

Sets the oversampling value to oversampling. This operation triggers the precalculation of all intermediate data like the coordinate offset matrices and the CCD matrix.

set_geometry(cols, rows, delta_x, delta_y, finv=1)

Sets the geometry of the CCD to cols columns wide, rows rows tall, and with pixel sizes delta_x x delta_y, both in meters. The optional argument finv establishes adjusts the plate scale between the last optical element in the OpticalModel optics and the CCD.

set_parallel(val)

Enables or disables parallelization according to the boolean value val.

integrate()

Triggers integration of the sky intensity function passed to the constructor, in a serial or parallel fashion according to the current parallelization configuration. Returns a tuple with the following information, in order:

  1. Number of slices of the CCD.

  2. The mean computation time of each integration slice.

  3. The standard deviation of the computation time of all slices.

  4. Total integration time (in seconds).

TODO: specify integration time!

integrate_serial():

Force computation of all slices in one thread (equivalent to calling integrate() with parallelization disabled). No value is returned.

integrate_parallel():

Force computation of all slices in one thread (equivalent to calling integrate() with parallelization enabled). No value is returned.

save_to_file(path):

Saves the image produced by the CCD to an image file specified by path.
